Use the Project Settings dialog box to set all of the default values for the fields of the Add Device dialog box. Example: If you enter a Default Admin Password in the Project Settings dialog box, when you open the Add Device dialog box, the Admin Password field will be populated with the default value entered here. If you leave the Default Admin Password field blank in the Project Settings dialog box, the Admin Password field will be blank when you open the Add Device dialog box. |

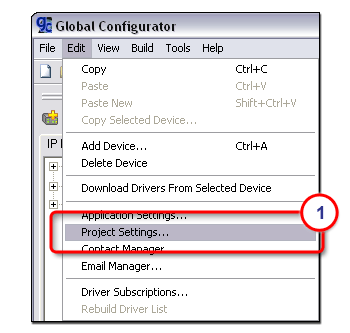

Project Settings...To open the Projects Settings dialog box:

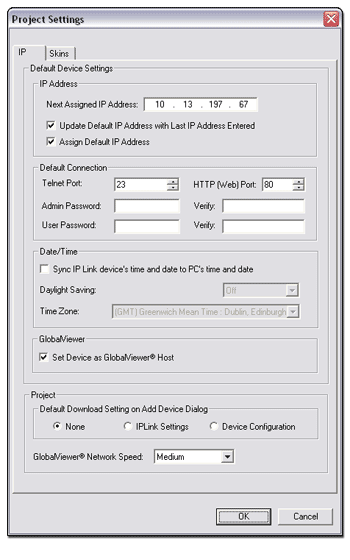

The Project Settings dialog box opens with the following options on the IP tab: Update Default IP address with Last IP address Entered Default Connection Telnet Port Default Connection Web Port Default Admin Password Download Settings on Add Device Dialog
Click a link above or click a selection on the image at right for more information. |
|
|

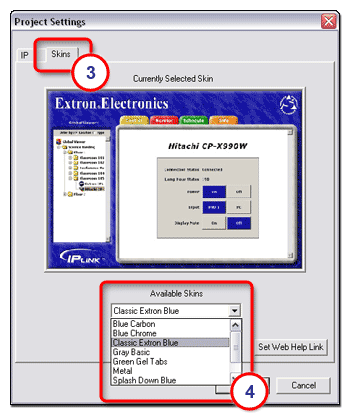

Use the Skins tab (3) with drop-down list (4) to select the look and feel of the GlobalViewer® interface. Skins options include: Blue Chrome Blue Carbon Classic Extron Blue (shown at right) Gray Basic Green Gel Tabs Metal Splash Down Blue Steel Gauges Wood Finish |
|
