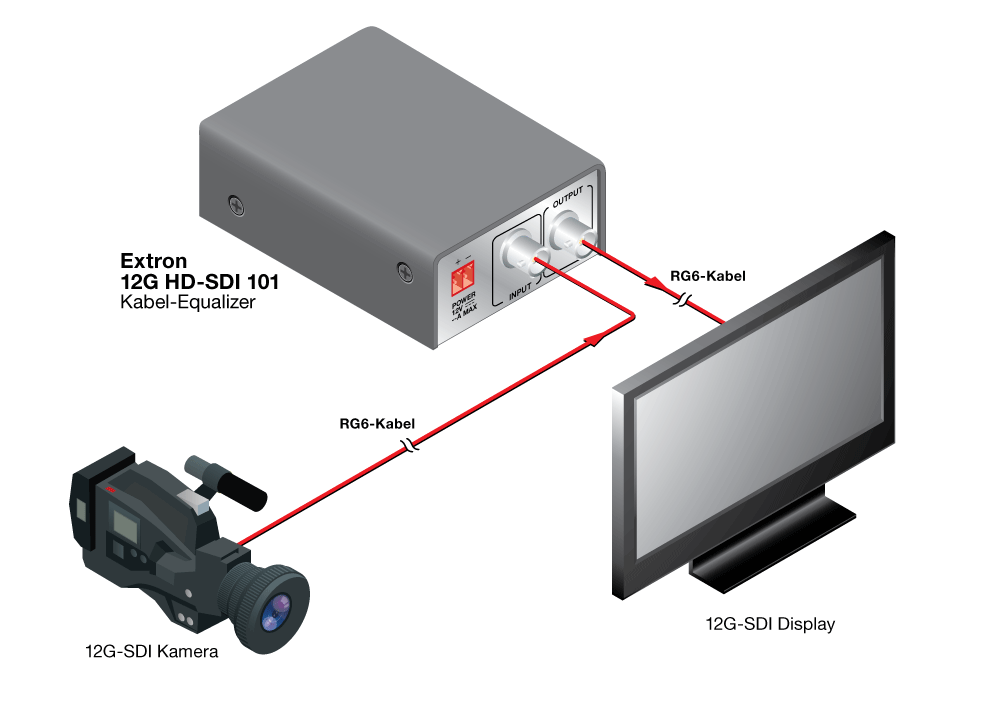

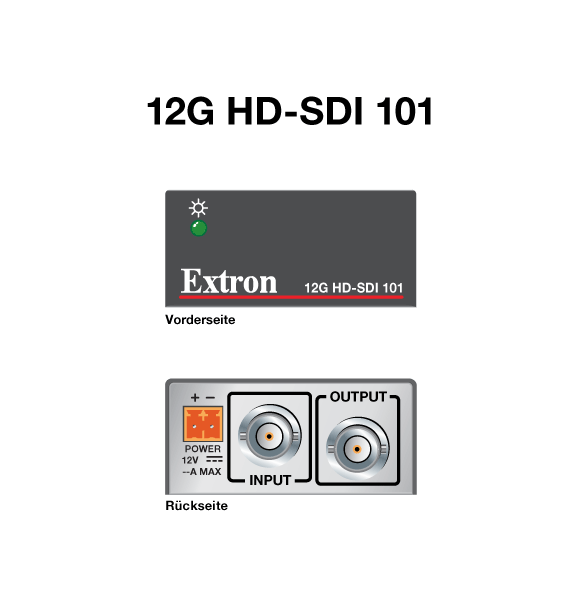

| 12G HD-SDI 101 |
|
 specification |
|---|
 |
| Frame rate1 | 23.97, 24. 29.97, 30, 50, 59.94 and 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, and 4:2:0 |
| Color bit depth1 | 8 or 10 bits per color |
| Signal Type | 6G-SDI, 12G-SDI |
| Max. video data rate | 11.88 Gbps per 12G-SDI connection |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (www.extron.com/8Kdatarate) to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Signal Type | SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI digital video |
| Gain | Unity |
| Resolution | 8 or 10 bits, automatic |
| Operation standards | SMPTE 259M-C, SMPTE 292M, SMPTE 424M, SMPTE 372M, SMPTE ST-2081, SMPTE 2082,
ITU-RBT.601, ITU-RBT.1120 |
| Auto data rate lock | Yes |
| Latency | 14 ns |
| Level mapping | Supports both level A and level B mapping (3G-SDI and 6G-SDI) |
| Bit Depth | |
| 12G-SDI | Supports up to 10 bits |
| 6G-SDI | Supports up to 10 bits |
| 3G-SDI | Supports up to 12 bits |
| HD-SDI | Supports up to 12 bits |
| SDI | Supports up to 12 bits |
|
| Video input |
|---|
| Number/signal type | 1 single link SDI, HD-SDI, 3G/6G/12G-SDI digital component video |
| Connector | 1 female BNC |
| Nominal level | 0.8 Vp-p |
| Minimum/maximum levels | 0.5 V to 1 Vp-p with no offset |
| Impedance | 75 ohms |
| Return loss | ≥15 dB @ 5 MHz to 2.97 GHz |
| DC offset (max. allowable) | 5 V |
| Input coupling | AC |
| Input cable equalization | Automatic for up to -30 dB of cable loss |
| 12G-SDI | 70 meters (230 feet) |
| 6G-SDI | 90 meters (295 feet) |
| 3G-SDI | 180 meters (590 feet) |
| HD-SDI | 240 meters (787 feet) |
| SDI | 300 meters (984 feet) |
| NOTE | Transmission distance varies depending on the signal resolution and on the type of cable, source, and display used in the system. |
|
|
| Video output |
|---|
| Number/signal type | 1 single link SDI, HD-SDI, 3G/6G/12G-SDI digital component video |
| Connector | 1 female BNC |
| Re-clocking | Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, and 11.88 Gbps (bypassed for all other rates) |
| Nominal level | 0.8 Vp-p |
| Minimum/maximum levels | 0.5 V to 1.0 Vp-p |
| Impedance | 75 ohms |
| Return loss | >25 dB @ 100 MHz |
| DC offset | ±5 mV with input at 0 offset |
|
| Audio |
|---|
| Audio channels | Supports up to 16 channels |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts |
| Power input requirements | 12 VDC, 0.1 A |
| Power consumption | |
| Device | 1.0 watts @ 12 VDC |
| Device and power supply | 1.2 watts @ 12 VDC |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 3.2 BTU/hr |
| Device and power supply | 3.8 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional rack shelf kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 2.2" W x 3.0" D (one-eighth rack wide)
(2.5 cm H x 5.6 cm W x 7.6 cm D)
(Depth excludes connectors.) |
| Product weight | 0.1 lbs (0.1 kg) |
| Regulatory compliance | CE, c-UL, UL, FCC Class A, VCCI, AS/NZS, ICES |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4890-D8) |
