DA4 12G HD-SDI

12G-SDI-Verteilverstärker mit vier Ausgängen
Hauptmerkmale
  • Automatische Anpassung an SMPTE- und digitale ITU-Videostandards für SDI-Signale mit Datenraten bis zu 12G‑SDI
  • Unterstützt Datenraten von 270 Mbps bis 11,88 Gbps
  • Unterstützung von HDR - High Dynamic Range Video
  • Automatische Kompensation am Eingang
  • Automatische Neutaktung am Ausgang
  • Übermittelt HDR, bis zu 16 Embedded Audiokanäle und andere Zusatzdaten, einschließlich Untertitel und Timecode
The Extron DA4 12G HD-SDI
Modell Beschreibung der Version Teilenummer
 DA4 12G HD-SDI 12G-SDI-Verteilverstärker mit vier Ausgängen 60-1674-02
 DA4 12G HD-SDI 12G-SDI-Verteilverstärker mit vier Ausgängen 60-1674-01 AUS DEM PROGRAMM GENOMMEN

Der DA4 12G HD‑SDI ist ein kompakter Verteilverstärker mit einem Eingang und vier Ausgängen für SDI- und digitale Multiraten-SDI-Videosignale. Er unterstützt alle gebräuchlichen seriellen Digitalvideo-Datenraten bis 11,88 Gbps und überträgt zudem HDR, bis zu 16 Embedded Audiokanäle und andere Zusatzinformationen, die den digitalen Videostandards SMPTE und ITU entsprechen. Mit der automatischen Kabelkompensation am Eingang kann über Extron RG6-Kabel SDI bis zu 300 m, HD‑SDI bis zu 240 m, 3G‑SDI-Video bis zu 180 m, 6G‑SDI bis zu 90 m und digitales 12G‑SDI-Video bis zu 70 m weit übertragen werden. Der DA4 12G HD‑SDI ist in einem Metallgehäuse mit 1/4-Rackbreite untergebracht und bietet Montageoptionen zur bequemen Integration in neue und bereits vorhandene AV‑Systeme.

Merkmale

  • Automatische Anpassung an SMPTE- und digitale ITU-Videostandards für SDI-Signale mit Datenraten bis zu 12G‑SDI
  • Unterstützt Datenraten von 270 Mbps bis 11,88 Gbps
  • Unterstützung von HDR - High Dynamic Range Video — Ermöglicht einen größeren Kontrastumfang und ein breiteres Farbspektrum durch die Bereitstellung der erforderlichen Videobandbreite, Farbtiefe und Fähigkeit zum Metadatenaustausch für HDR-Video.
  • Automatische Kompensation am Eingang — Kompensation für Dämpfung am eingehenden Signal und automatischer Ausgleich von Kabeln bis zu 70 m für 12G‑SDI-Signale, 240 m für HD SDI und bis zu 300 m für SDI.
  • Automatische Neutaktung am Ausgang — Regeneration und Wiederherstellung der zeitlichen Abstimmung des digitalen Videosignals an jedem Ausgang. Dadurch wird bei hohen Frequenzen auftretender Jitter beseitigt und AV‑Systemdesignern zusätzliche Reserve beim Anschluss mehrerer Geräte geboten. Neutaktung auch pro Ausgang wählbar oder kann umgangen werden.
  • Übermittelt HDR, bis zu 16 Embedded Audiokanäle und andere Zusatzdaten, einschließlich Untertitel und Timecode
  • LED-Anzeige des Eingangsformats — Eine praktische Anzeige für die Datenrate am Frontbedienfeld bietet visuelle Bestätigung der 12G‑SDI, 6G‑SDI, 3G‑SDI-, HD‑SDI- und SDI-Datenrate am Eingang für eine schnelle visuelle Identifikation des eingehenden digitalen Videosignals.
  • USB-Konfigurationsanschluss am Frontbedienfeld — Bietet bequemen Zugang zur Einrichtung, Konfiguration und für Firmware-Updates.
  • Rackmontierbares Metallgehäuse mit 1/4-Rackbreite
  • Externes Extron Everlast-Netzteil im Lieferumfang enthalten (Teilenummer 70-1175-01) — Bietet weltweite Kompatibilität, nachgewiesene hohe Zuverlässigkeit und geringen Stromverbrauch.
  • 7 Jahre Garantie auf Material und Verarbeitung der Extron Everlast-Netzteile
MITGELIEFERTES ZUBEHÖR
  PS 1205 C 12 V, 0,5 A-Netzteil, Schraubklemmstecker 70-1175-01
LIEFERBARES ZUBEHÖR
  MBU 123 Flaches Montageset für Produkte mit 1/8‑, 1/4‑ oder 1/2‑Rackbreite
  RSF 123 Montagewanne für 3,5 Zoll tiefe Produkte
  RSB 123 Montagewanne für 8,9 cm tiefe Produkte
  RSB 126 Basis-Montagewanne für 6 Zoll tiefe Produkte
  RSB 129 Montagewanne für 9,5 Zoll tiefe Produkte
  ZipClip 50 Montageset für das Netzteil PS 1205 C
  ZipClip 400 Montageset für Produkte mit 1/8, 1/4 und 1/2 Rackbreite

Spezifikationen

DA4 12G HD-SDI
TRUE 4K specification

   Frame rate1 23.97, 24, 29.97, 30, 50, 59.94 and 60 fps
   Chroma sampling1 4:4:4, 4:2:2, and 4:2:0
   Color bit depth1 8, 10, or 12 bits per color
   Signal Type 6G-SDI, 12G-SDI
   Max. video data rate 11.88 Gbps per 12G-SDI connection
    NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
   Signal Type SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI digital video
   Gain Unity
   Resolution 8, 10, or 12 bits, automatic
   Operation standards SMPTE-259M, SMPTE-292M, SMPTE-424M, SMPTE-372M, SMPTE ST-2081, SMPTE 2082,
ITU-RBT.601, ITU-RBT.1120
   Auto data rate lock Yes
   Latency 10 ns
   Level mapping Supports both level A and level B mapping (3G-SDI and 6G-SDI)
   Bit Depth
      12G-SDI Supports up to 10 bits
      6G-SDI Supports up to 10 bits
      3G-SDI Supports up to 12 bits
      HD-SDI Supports up to 12 bits
      SDI Supports up to 12 bits
Video input
   Number/signal type 1 single link SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI digital component video
   Connectors 1 female BNC
   Nominal level 0.8 Vp-p
   Minimum/maximum levels 0.5 Vp-p to 1 Vp-p with no offset
   Impedance 75 ohms
   Return loss ≥15 dB @ 5 MHz to 2.97 GHz
   DC offset (max. allowable) 5 V
   Input coupling AC
   Equalization Automatic for up to -30 dB of cable loss
      12G-SDI 70 meters (230 feet)
      6G-SDI 90 meters (295 feet)
      3G-SDI 180 meters (590 feet)
      HD-SDI 240 meters (787 feet)
      SDI 300 meters (984 feet)
       NOTE     Transmission distance will vary depending on the signal resolution, the type of cable, source and display used in the system.
Video output
   Number/signal type 4 single link SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI  digital component video
   Connectors 4 female BNC
   Re-clocking Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, and 11.88 Gbps
(bypassed for other rates)
   Nominal level 0.8 Vp-p
   Minimum/maximum levels 0.5 Vp-p to 1 Vp-p
   Impedance 75 ohms
   Return loss ≤25 dB @ 100 MHz
   DC offset ±5 mV with input at 0 offset
Audio
   Audio channels Supports up to 16 channels
General
   Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts
   Power input requirements  12 VDC, 0.2 A
   Ambient temperature/humidity Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
   Cooling Convection, unvented
   Mounting
      Rack mount Yes, with optional 1U rack shelf or with back of the rack mounting kit
      Furniture mount Yes, with optional under desk mounting kit
   Enclosure type  Metal
   Enclosure dimensions 1.0" H x 4.3" W x 3.0" D (quarter rack wide)
(2.5 cm H x 11 cm W x 7.6 cm D)
(Depth excludes connectors.)
   Product weight  0.33 lbs (0.15 kg)
   Regulatory compliance CE, CUL, UL, FCC Class A, VCCI, AS/NZS, ICES
   Warranty 3 years parts and labor
   Everlast power supply warranty 7 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
(5884-D7)
Versand-Abmessung und -Gewicht
    Teilenummer Höhe Breite Tiefe Gewicht
    60-1674-02 24,1 cm 18,1 cm 6,8 cm 0,62 kg

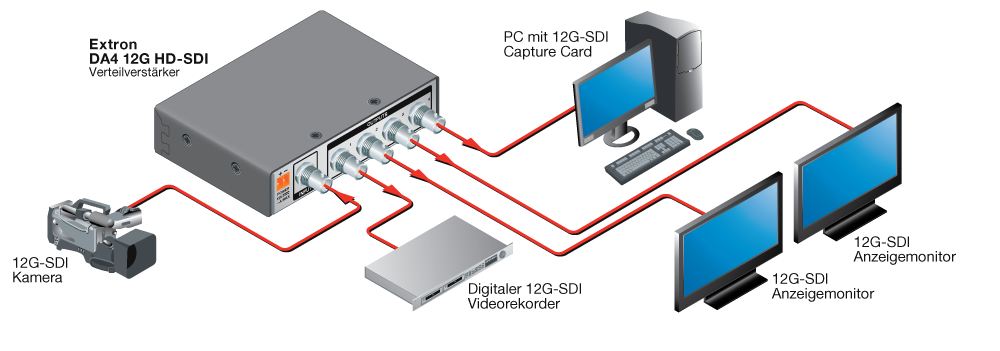

Anwendungsbeispiel

DA4 12G HD-SDI Diagram

Vorder- und Rückseite

DA4 12G HD-SDI Panel Drawing
